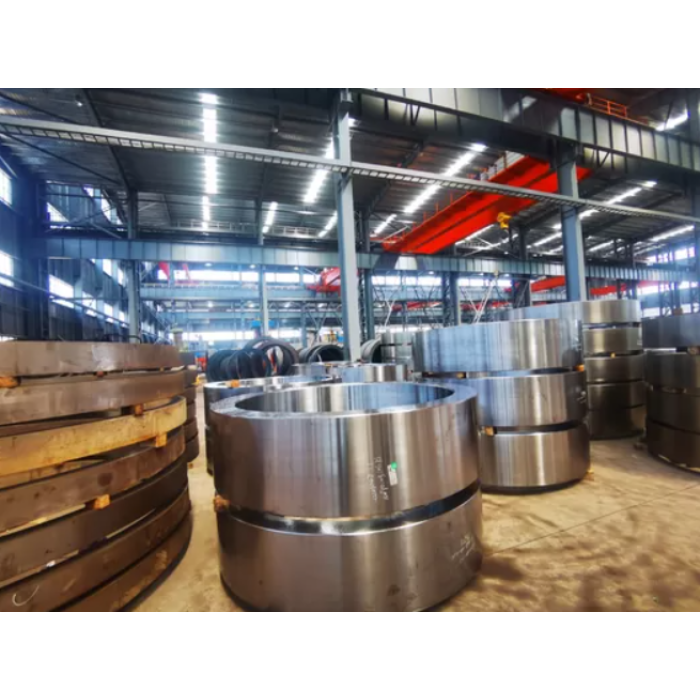

Anneau en acier forgé en métal SA266
- Type de paiement: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Quantité de commande minimum: 1 Ton
- transport: Ocean,Land,Air,Express
PRODUCT ATTRIBUTES
Emballage & livraison
| Unités de vente: | Ton |
|---|
Description du produit
SA266 Normalisation normalisée + Trempe Traitement thermique de trempe et de revenu Anneau en acier forgé ASTM-SA266M
Application d'anneau en acier forgé
Engrenage/Transmission
Domaine de la métallurgie
Champ de pétrole et de gaz
La construction navale
Énergie éolienne
Chimie/PRV&Pipe
Exploitation minière
Machines à fourmis Sugar PI
Construction
Production d'électricité/Moteurs
Autres
Norme ASTM/ASME :ASTM SA-266/SA-266M
| Elements | composition % | ||
| 1Class and 2 Class | 3 Class | 4Class | |
| C,≤ | 0.3 | 0.35 | 0.30 |
| Mn | 0.4~1.05 | 0.8~1.35 | 0.80~1.35 |
| P,≤ | 0.025 | 0.025 | 0.025 |
| S,≤ | 0.025 | 0.025 | 0.025 |
| Si | 0.15~0.35 | 0.15~0.35 | 0.15~0.35 |
Le plus grand diamètre extérieur : 5000 mm
Poids le plus élevé : 15 000 kg.
Finition de surface 3,2 um Ra ou selon les besoins.
Réduction de forgeage min : 3,1 ou au besoin
Les principaux équipements de fabrication :
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
