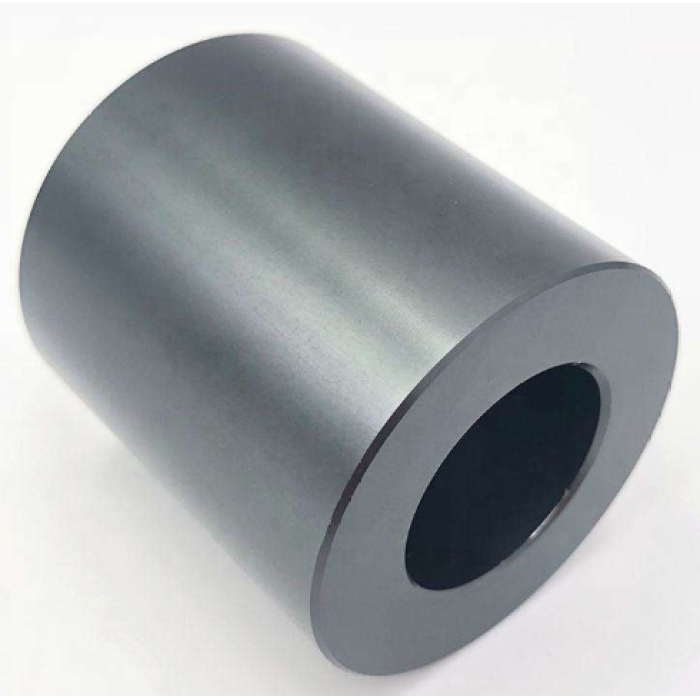

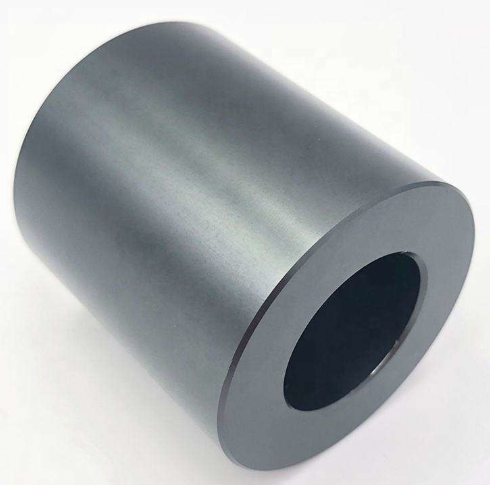

Manchons de bague forgés à froid
- Type de paiement: L/C,T/T
- Incoterm: FOB,CFR,CIF,EXW
- Quantité de commande minimum: 1 Ton
- transport: Land,Air,Express,Ocean
PRODUCT ATTRIBUTES
Emballage & livraison
| Unités de vente: | Ton |
|---|
Description du produit
Fabricant de forgeage de manchons de bague de forgeage à froid sur mesure
- Le plus grand diamètre extérieur : 2500 mm
- Poids le plus élevé : 15 000 kg.
- Finition de surface : 3,2 um Ra ou selon les besoins.
- Réduction de forgeage min : 3,1 ou au besoin
- Usinage ébauche ou Usinage Finis
Élément chimique :
| C:≤0.08% | Si≤1% |
| Mn:≤2.00% | P≤0.045% |
| S≤0.030% | Ni:10%~14% |
| Cr:16.0~18.0% | Mo:2.00~3.00% |
Traitement thermique :
Solution
Propriétés mécaniques :
| Item | Tensile Strength | Yield Strength | Elongation Rate | Reduction Of Area | Hardness |
| F316 | ≥515 Mpa | ≥205 Mpa | ≥30% | ≥50% | ... |
Les principaux équipements de fabrication :
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Liste des certificats :
| Certificates list | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
